JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
3 Years
| Ask Lasest Price | |
| Brand Name : | WANSHIDA |
| Certification : | CE, ISO9001 |
| Model Number : | Y83Q-4000A |
| Delivery Time : | 25 days |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 30 sets/month |
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000 |
| Model Number | Y83Q-4000A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details
| Type | China Scrap Metal Baler Shear Factory |
|---|

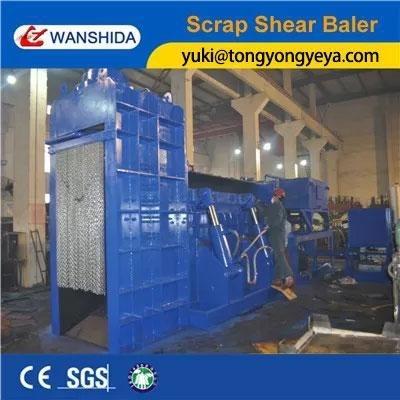

This scrap metal shear baler is configured with the occlusive compacting box, suitable for processing the oversized waste metals and baling the scraped vehicles. The specific size of compacting box and the bale can be designed specially to meet the needs of users. As for the standard specification, the machine is about 3,000mm or 5,000mm long, 1,350mm or 2,000mm wide. Based on the processing conditions, this machine can be equipped with motor or Cummins diesel engine.
Our machine is warranted for one year and the warranty period is allowed to be expanded as required. Additionally, we supply users with a range of services like installation and debugging of machines, training for operators and so on. Our sales group will give more product information for customers.
Technical Parameters:
Scrap Metal Shear Baler | |
Model | Y83Q-4000A |
Cylinder pushing /shearing force | 400 ton |
Maximum working pressure | 20MPa |
Capacity | 1.5-2.5 tons/h |
Press room open size | 3000×1200×680mm |
Press room close size | 3000×460×460mm |
Bale dimensions (LxWxH) | 460×(300-460)mm |
Cutting Speed | 2-3 times/min |
Hydraulic Oil Cooling system | Air cooling system |
Motor | 37kW×2sets |
Baler dimensions (LxWxH) | 8700×2250×3200mm 2000×1600×1700mm |
Weight | 30000(kgs) |
Scrap size can be cut | Square Steel: 90×90mm Angle Iron: 180×180×15mm(3pcs) Round Steel:D100mm I Steel:320×132×11.5mm Steel plate:30×450mm Channel Steel: 320×90×10mm |
The Y83Q series scrap metal shear baler is fabricated by absorbing
the advanced technology of similar products like the metal baler
and the metal shear at home and abroad, combing the needs of
customers and our actual operating situations.
|
|
