Product Details

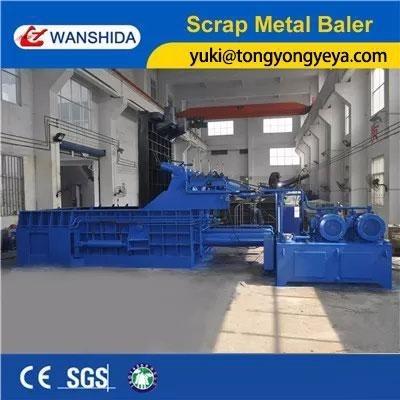

| Type | Scrap Metal Baler |
|---|
The operation method can be hand valve control or PLC automatic control.
Techncial parameters:
Model | Y83/T-400 |
Cylinder pushing /shearing force | 400 ton |
Maximum working pressure | 25MPa |
Capacity | 9tons/h |
Compress room size | 3000×2000×1200mm |
Bale dimensions (LxWxH) | (450-800)×550×650mm |
Feeding mouth | 2800×1800mm |
Bale weight | 400-800kg |
Theoretical dry cicle time | 160 sec. |
Max. thickness can be press | 9mm |
Motor | 110kW |
Baler dimensions (LxWxH) | 11800×6760×6700mm |
Weight | 50000(kgs) |
Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the
compacting box manually or mechanically. The Lid cylinder starts to
revolve the Lid to the right position for sealing the compacting
box completely. Then the ejectors of the side cylinder and the main
cylinder squeeze the waste materials into bale. Relying on the
locking door cylinder, the locking door will be opened. The ejector
of the main cylinder will push the bale out of the compacting box,
finishing the baling process.
Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
Applications
Non Ferrous Metals
Coppers
Aluminum Cans
Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans
Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires
Waste scrap car
|
|
