Product Details
| Type | Forwarder Out Scrap Metal Baling Press |
|---|

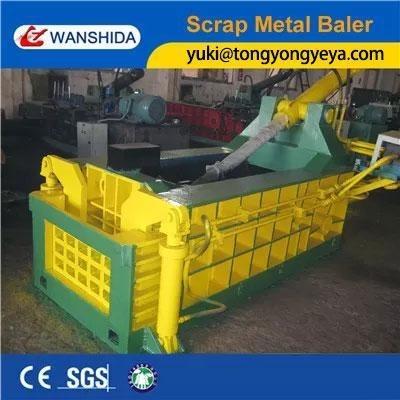

This Y83Q-160 Forwarder out Scrap Metal Baling Press is forward-out machine that is commonly used in the metal smelting plant with small and medium scaled production, as well as the waste metal recycled station.
It is usually manipulated manually to process the light and thin materials. The finished bale is applicable for small processing furnace in the steel plant. In general, the bale is about 200mm high and 600mm wide. Its length depends on the quanity of fed materials. If cutomers want more information about this scrap metal baler, please contact our professional sales department.
Technical Parameters:
Y83Q-160 Forwarder out Scrap Metal Baling Press (Bales Front Out) | |
Model | Y83Q-160 |
Cylinder pushing /shearing force | 160 ton |
Maximum working pressure | 25MPa |
Capacity | 3 tons/h |
Compress room size | 1450×600×600mm |
Bale dimensions (L×W×H) | (400-600)×600×300mm |
Theoretical dry cycle time | 160 sec. |
Motor | 22 kW |
Weight | 8000KG |
Baler dimensions (L×W×H) | 6500×2300×2000mm |
Features:
1. This forward out baler is driven be hydraulic devices. In the
compact structure with rational design, it is small in volume and
light in weight. Moreover, it works with small inertia of movement,
low noise, stable but flexible operation and other highlights.
2. Our machine utilizes the integrated hydraulic and electrical
control. It is easy for use and maintenance.
3. This forward out baler is featured by strong adaptability to
diversified working conditions and wide applicable range. It can be
used as the machining equipment in the metal recycling unit and for
furnace charge in the casting room of factory.
4. Aside from low energy consumption, this product also
incorporates such characteristics as easy installation, safe and
dependable use, high efficiency, low cost and so on.
Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
Application:
Non Ferrous Metals
coppers
Aluminum Cans
Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans
Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires
|
|
